1.Product Parameter
1 | Item | QS-RF8W36L10 |
2 | Power | 10W |
3 | Working voltage | DC12V |
4 | Size | L5000 x8mm |
5 | LED | 36pcs 9V/1W LED |
6 | color | 3000K/6500K/11000K |
7 | beam angle | 165° |
8 | IP Rating | IP44 |
9 | Minimum cut | 2.89mm |
10 | Warranty | 3 years |
11 | Certification | CE,RoHS |

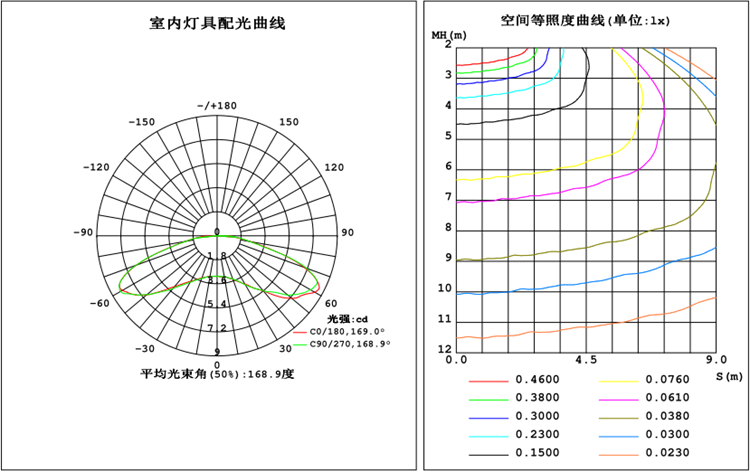

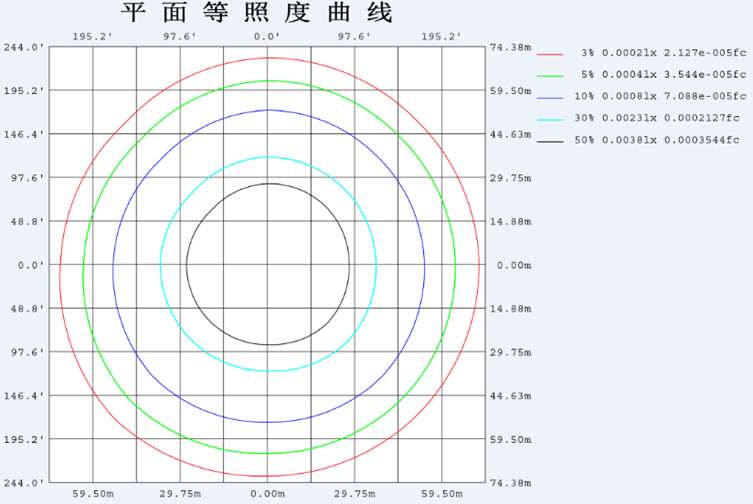

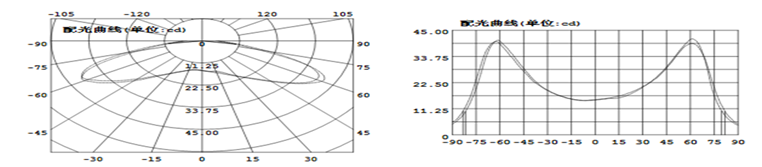

2.Test Report
3.Product features:
1. Large view angle and exclusive light distribution curve ensure that there are no any dark areas on the surface 2cm away from the strip;
2. one LED can be cut, the width of flexible PCB is only 8mm, and any narrow space can be used conveniently;
3. back glue good for heat dissipation, ultra-high heat dissipation performance, maintaining the stability of continuous products;
4. LM80 LED, longer service life;
5. a variety of color temperatures can be selected to adapt to different industries and environments;

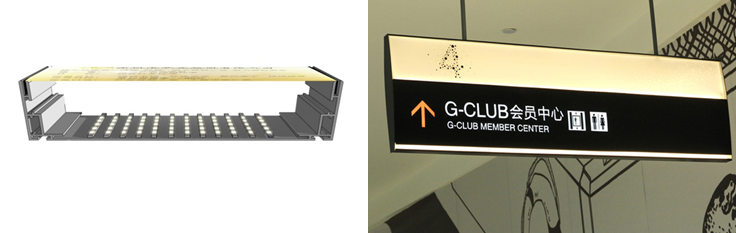

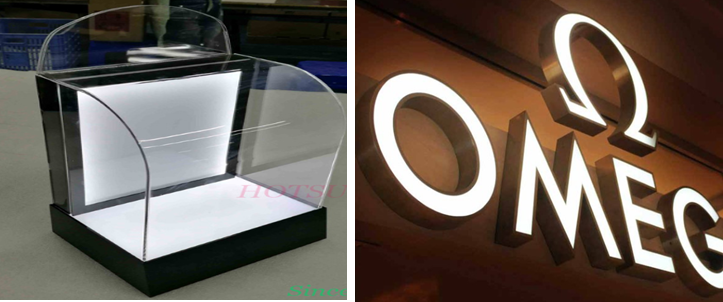

4.Product Aplication:
1. it is especially suitable for backlight in very small space. When the height is 2cm and the spacing is 3cm, the overall light spot is uniform without dark area;
2. suitable for advertising signs with small space, such as mini characters, resin characters, flat plates, ultra-thin light boxes, lighting signs, advertising signs and so on;
3. suitable for light boxes and luminous words with a thickness of 2-18cm
4. suitable for display props backlight and acrylic luminous products backlight.

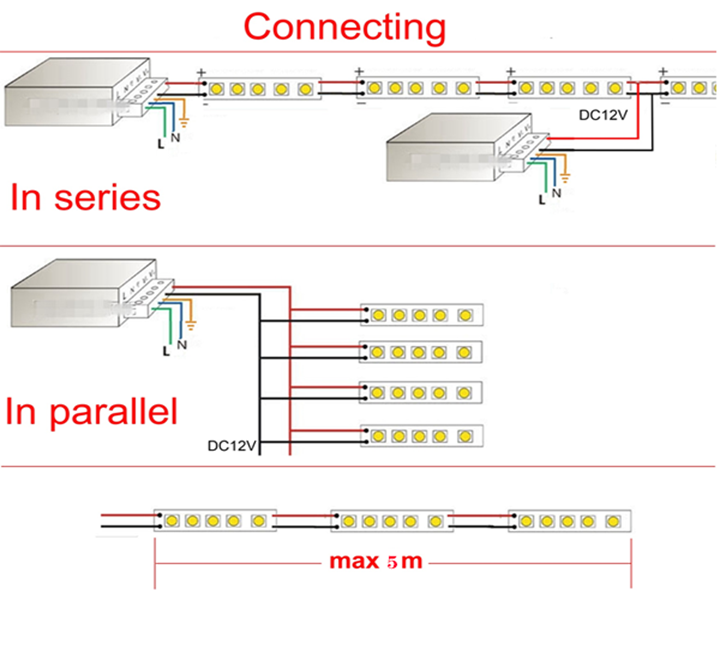

5. Instructions and Precautions

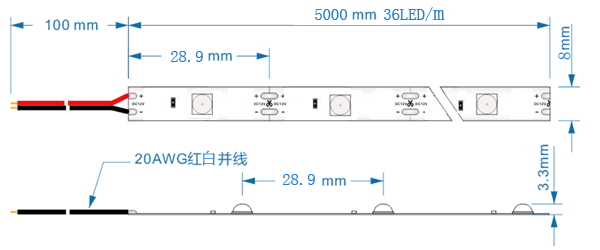

Cutting
